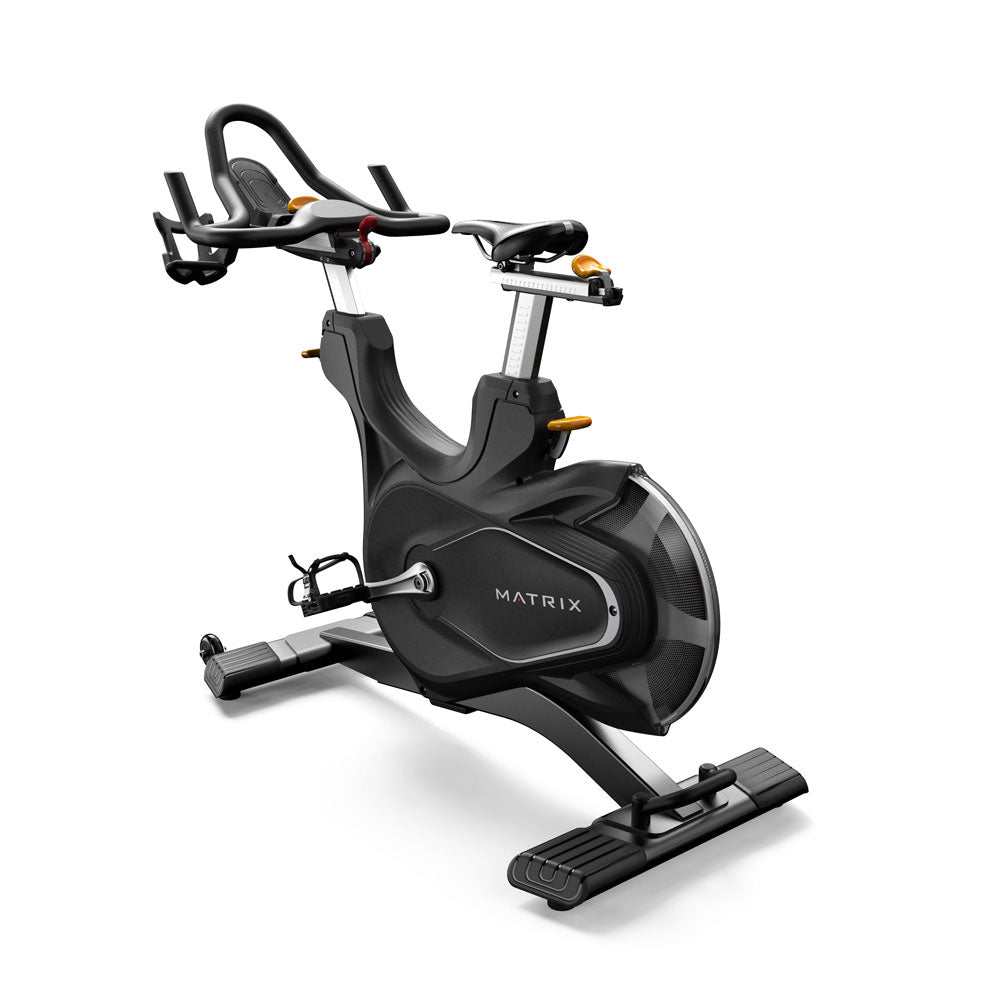

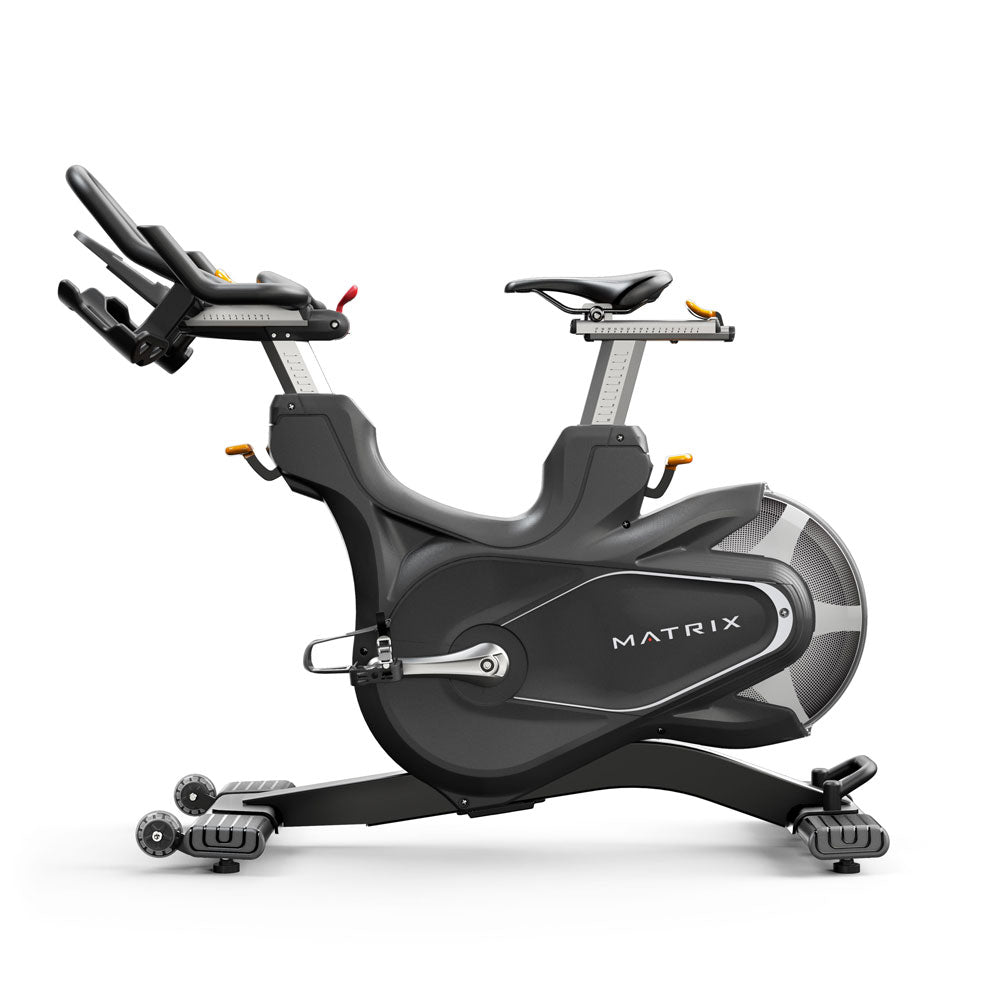

Matrix CXC Training Cycle

Product Overview

Make group classes more popular than ever with our powerful, comfortable CXC Training Cycle. It includes repeatable magnetic resistance, optimized ergonomics, intuitive four-way adjustment with quick-touch operation and device storage to keep training apps, social media or entertainment in view. Add the optional wireless LCD console for a basic metric-tracking experience.

• Ideal for group cycling classes or for use by riders on your cardio floor
• NarrowQ-factor optimize the position of the hips, knees and feet to comfortably mimic a real outdoor riding experience
• Low-maintenance, well-protected rear flywheel design includes magnetic resistance for smooth, consistent adjustments
• Contoured resistance lever provides tactile feedback for quick changes
• Intuitive four-way adjustmentswith quick-touch operation and easy seat-tilt adjustment makes customizing the cycle to each user’s body virtually effortless
• Ergonomically sculpted seat relieves pressure on touchpoints to make even long, intense cycling classes comfortable
• Comfortablemulti-position handlebars with an integrated water bottle holder simulate the different grips of real road racingIntegrated device storage shelf keeps smartphones in view

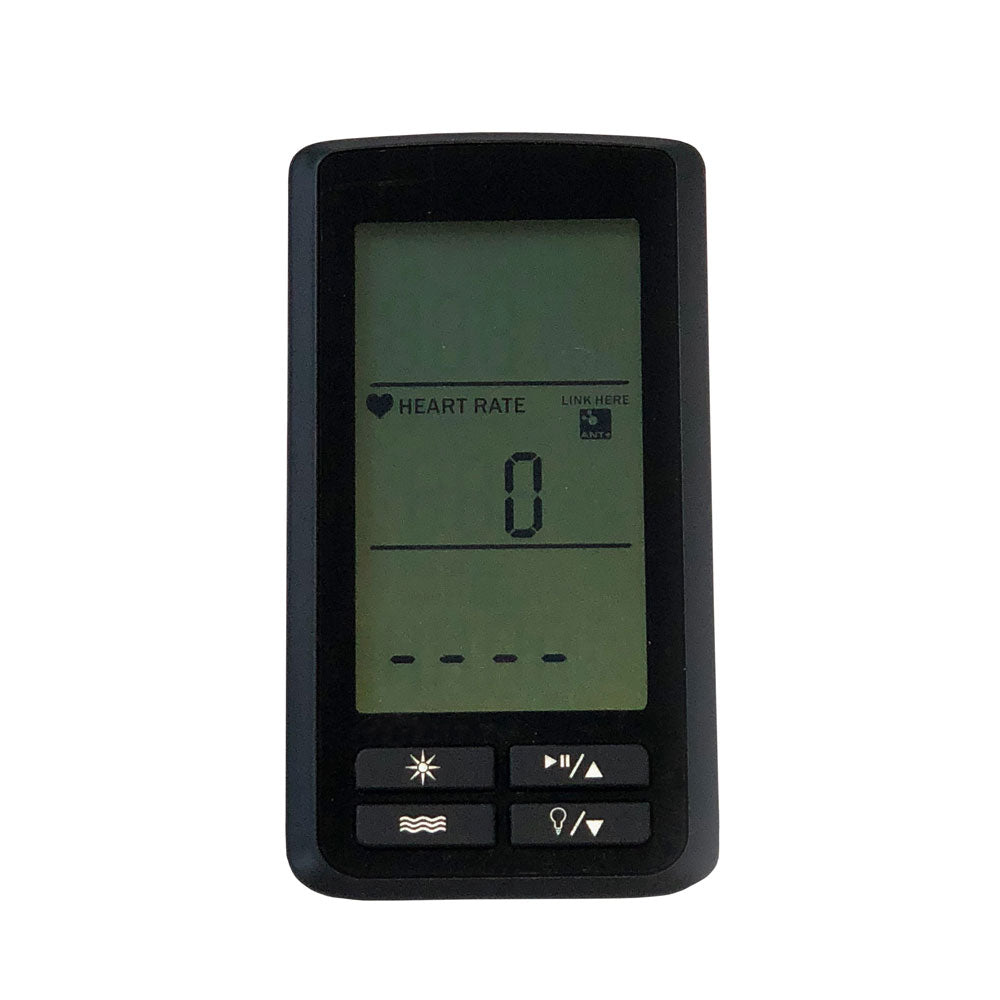

• Optional wireless LCD console clearly displays RPMs, calories, distance, time and heart rate when used with a heart rate strap
• Quick-release accesspanels and easily removable pedal cranks simplify service

Product Features

Durable Drive System

Our single-piece, weld-free drive system with an adjustment-free Flexonic belt provides consistent performance and will never warp, and our magnetic resistance system virtually eliminates internal friction and failure points.

PROTECTED FLYWHEEL

Our flywheel includes a protective shroud that keeps the moving components safe from sweat, cleaning solvents and dust, prolonging product life and averting problems before they ever occur.

SOLID and PORTABLE

We built cycles that had a stable feel no matter how intense the ride, but we also included integrated wheels and handles so rearranging them was still easy despite the ultra-solid construction.

EXCEPTIONAL ERGONOMICS

Intuitive adjustments customize the cycle to each user's body, while an ergonomically sculpted seat and comfortable, multi-grip handlebars relieve pressure on touchpoints and simulate real road racing.

Superior Manufacturing

Leveraging a combination of highly skilled technicians, automatic assembly and robotic welds, we were able to build the industry’s most stable, solid-feeling frame.

Product Specification

Grade	Commercial
Frame Material	Steel
Console Optional	Displays RPMs, calories, distance, time and heart rate when used with a heart rate strap, Telemetric Heart Rate Compatible
Q Factor	155 mm / 6.1"
Pedal Type	Dual-sided, SPD and toe cage
Drivetrain	Flexonic belt
Drivetrain Gear Ratio	1:10
Resistance System	Magnetic
Generator Powered	No
Flywheel	Rear, aluminium, evenly-weighted, 5kg
Water bottle holder	Yes, dual and integrated on handlebar
Saddle Adjustent	Vertical and horizontal
Saddle	Ergonomically sculpted seat
Transport Wheel	Yes
Dimensions (L X W X H)	122.4 x 56.4 x 102.8 cm / 48.2" x 22.2" x 40.5"
Product Weight	55.2 kg / 121.6 lbs.
User Weight Capacity	158.75 kg / 350 lbs.

Complimentary curbside delivery Australia wide

Unit will come boxed. To arrange installation for this product, please contact us. Special delivery will need to be arranged with the courier if you have stairs leading up to your property.

Complimentary Curbside Delivery Australia

We delivery to all Victoria, New South Whales, South Australia, Queensland, Brisbane, Western Australia and Tasmania residents

Unit will come boxed. To arrange installation for this product, please contact us. Special delivery will need to be arranged with the courier if you have stairs leading up to your property.

Product will only be shipped after full payment is received.
All available products will be dispatched within 2 working days.
Complimentary curbside delivery Australia wide. Please have someone to assist on the day of delivery.
Additional charges apply for door-to-door delivery, please contact us at support@jhta.com.au for rates.
Additional charges apply for installation, please contact us at support@jhta.com.au for rates.

Estimated Delivery time (Freight only)

Victoria: Between 3 - 5 working days after order is placed.
All other states: Between 5 -10 working days after order is placed.
International Shipping (NZ): Between 21 - 30 working days after order is placed

Product installation/assembly

Victoria: Between 5 - 7 business days after order is placed.

All other states: Between 10 -15 working days after order is placed.

International Shipping (NZ): Between 30 - 40 working days after order is placed

Pick-up

Pickup is only available upon receipt of "Ready For Pick-up" notification email.

Pick-up location: 78, Logis Blvd, Dandenong South, 3175 VIC

Mon - Fri (8:30AM - 3:30PM) Exclude Public Holidays

Cancellations, Returns or Refunds

We do not accept cancellations, returns or refunds due to change of mind. On rare occasions, if a change of mind request is approved, an admin fee of $149 + GST will incur.

Please check all dimensions and product specification prior to purchase. If you are unsure or require further confirmation, please contact support@jhta.com.au.

If the item is faulty, please visit Johnson Health Tech Support Portal and get in touch with our customer service team.

Please note - we are unable to comment or recommend on appropriate products for individuals with pre-existing medical condition/s. Please consult your health care practitioner for further advice.

Our equipment are built to last. We stand behind every product that we sell. Customers satisfaction matters a great deal to us. We offer up to 7 years warranty to you to show our commitment to premium quality.

Matrix Fitness Warranty

	Matrix Home Use	Matrix Commercial
Frame (not coating)	7 years	7 years
Motor	5 years	3 years
Parts	2 years	2 years
Labour	2 years	1 year

Vision Fitness Warranty

	Vision Home Use Cardio	Vision Commercial
Frame (not coating)	7 years	7 years
Motor	5 years	3 years
Parts	2 years	1 year
Labour	2 years	1 year

Horizon Warranty

Frame (not coating)	5 years
Motor	5 years
Parts	2 years
Labour	1 year

Tempo Fitness Warranty

Frame (not coating)	5 years
Motor	2 years
Parts	1 year
Labour	1 year

All Refurbished, Demo products

3 months warranty for parts only

In case of warranty claim, visit our Johnson Health Tech Support page.
