Matrix U30 Upright Bike With XIR Console

Save $339.95 AUD with code

Free curbside shipping AUS wide on cardio products

Experience a better ride by design with the unmatched ergonomics of the industry’s most stable, comfortable and versatile step-through bike. Our U30 Upright Bike includes our exclusive Dual Form™ Frame and Comfort Arc™ Seat.

Selected console: Matrix XIR Console

Buy Now, Pay Later


Standard Shipping: Curbside Only - Est 5 to 10 Business Days

Shipping + Product Assembly: Est 7-14 Business Days

Enquire Now

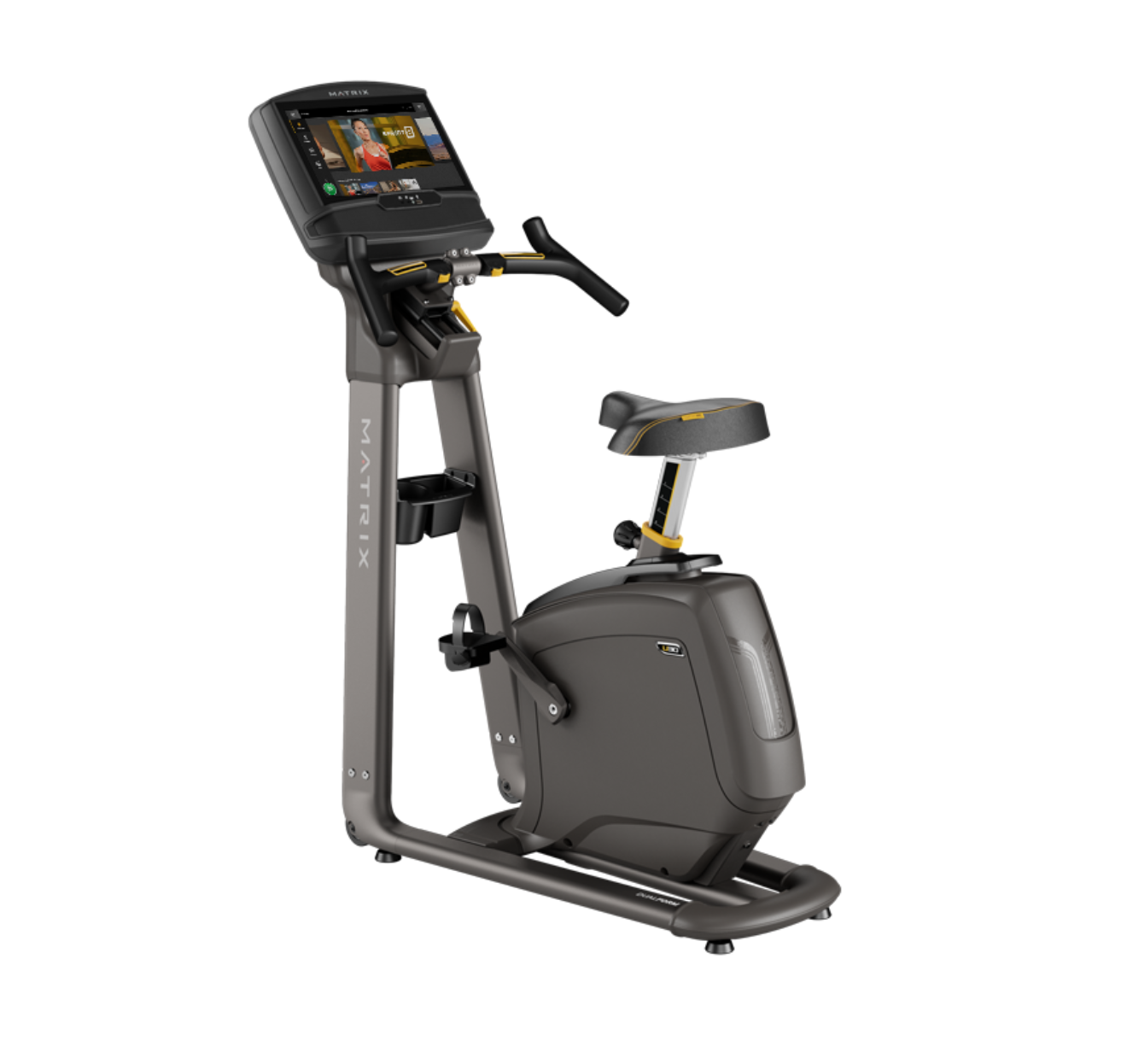

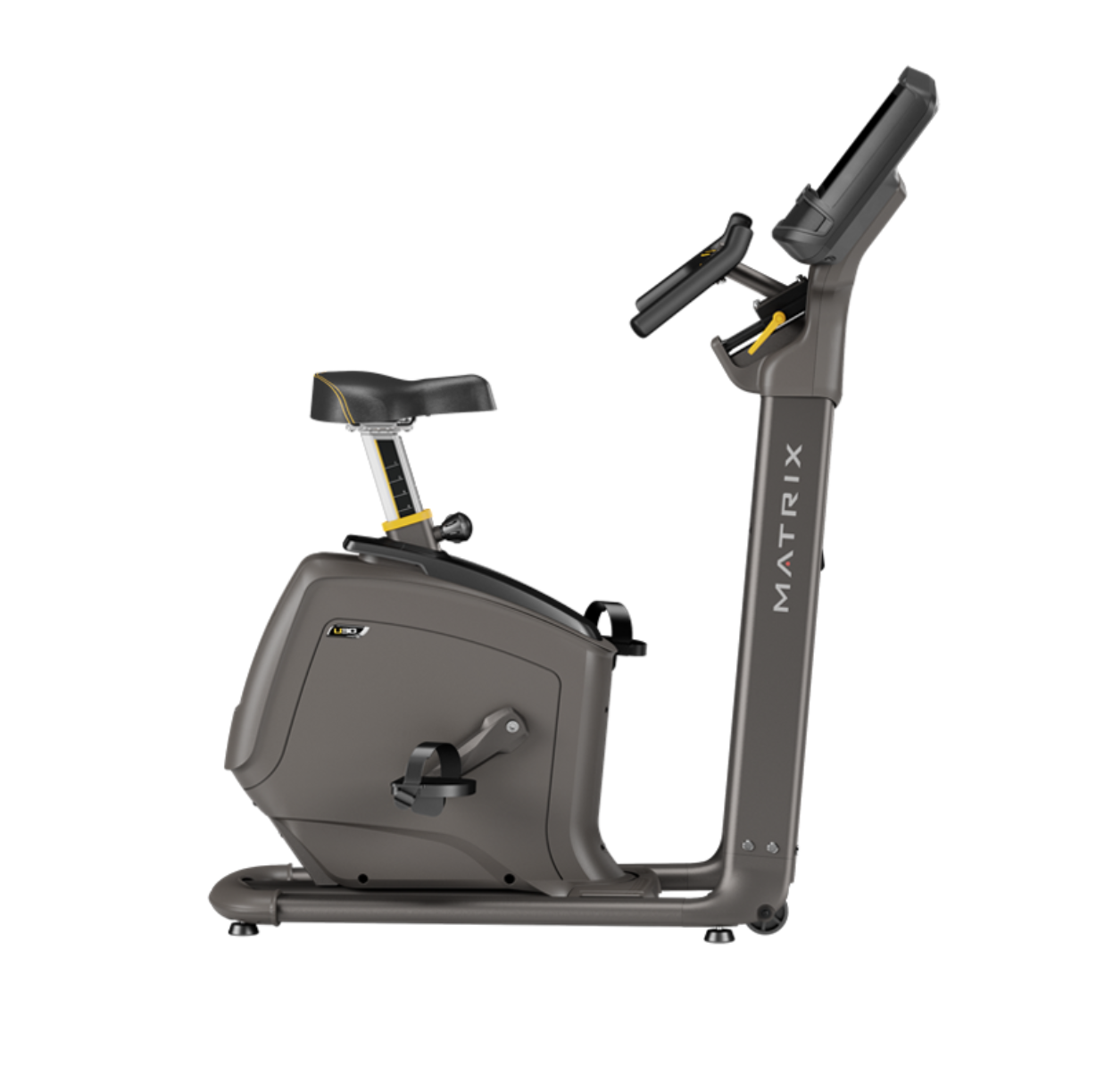

Matrix U30 Upright Bike With XIR Console

Experience a better ride by design with the unmatched ergonomics of the industry’s most stable, comfortable and versatile step-through bike. Our U30 Upright Bike includes our exclusive Dual Form Frame and Comfort Arc Seat.

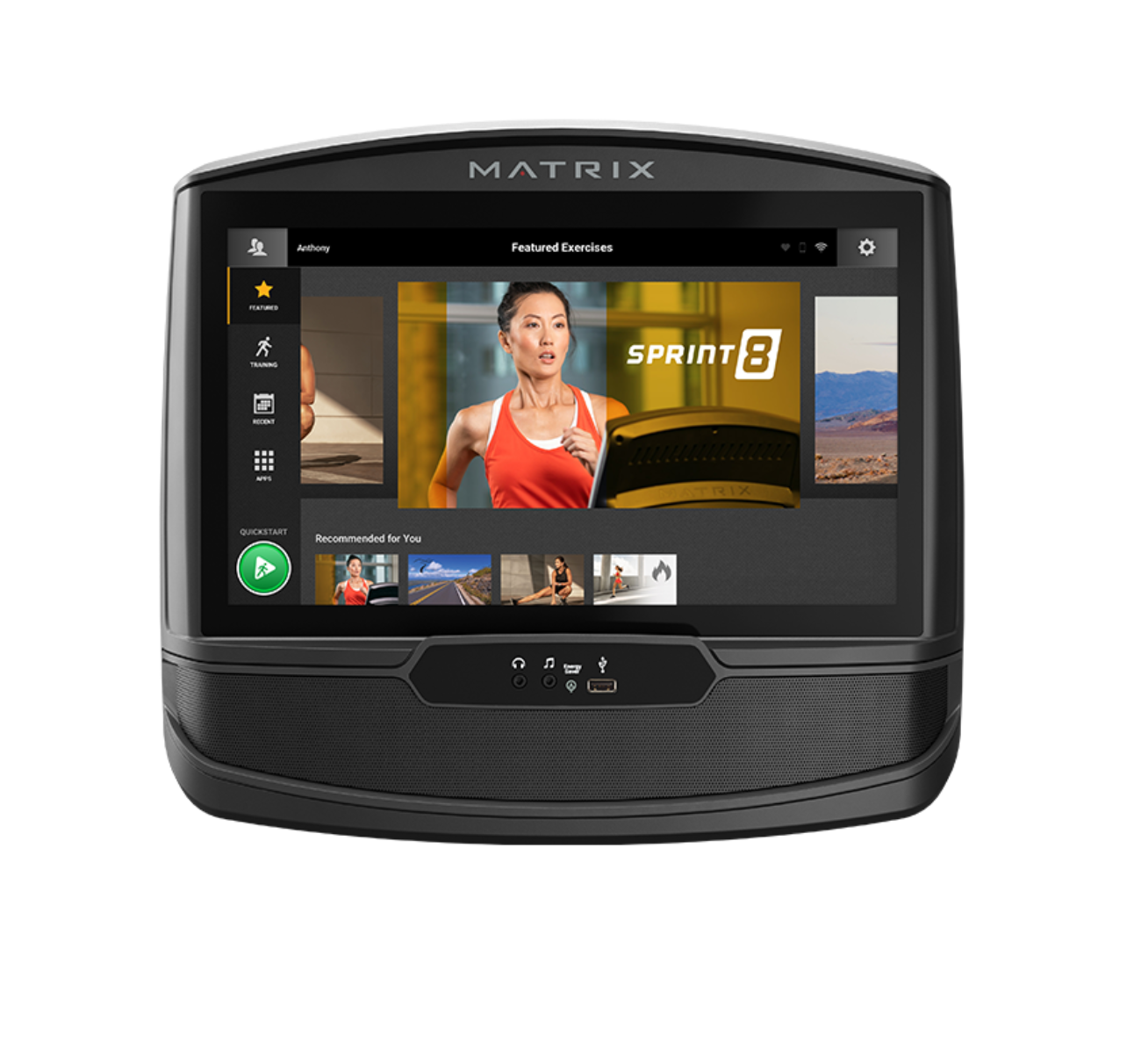

DISPLAY 16” class HD capacitive touchscreen (40 cm)

ViewFit Connectivity, entertainment apps, software updates


Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor

HDMI PORT Connect streaming media devices, phones or tablets
USB PORT Front: Use to access media from compatible devices and to install software updates. Rear: Not active
CONSOLE APPS My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
HEART RATE Bluetooth wireless heart rate, Bluetooth heart rate strap included
CONSOLE EXTRAS Integrated reading rack, energy saver mode, audio in/out
WORKOUTS 13 total — manual, fat burn, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
DISPLAY FEEDBACK Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH / KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, resistance, last resistance
ASSEMBLED WEIGHT 5.5 kg / 12 lbs.


SEAT TYPE Comfort Arc upright seat, interchangeable
SEAT ADJUSTMENT Up / down via turn-and-pull knob
RESISTANCE SYSTEM ECB magnetic braking system
RESISTANCE RANGE 20 levels, electronically adjustable
POWER REQUIREMENTS 120 V AC power, 15 A circuit (voltage may vary outside the USA)
PEDAL SPACING 194 mm / 7.6”
PEDAL TYPE Commercial grade, self-balancing pedals with adjustable straps
MAX USER WEIGHT 159 kg / 350 lbs.
HANDLEBAR DESIGN Adjustable multi-grip handlebars with resistance toggles and heart rate grips, interchangeable
FRAME TYPE Dual Form step-through upright
EXTRAS Water bottle holder
ASSEMBLED WEIGHT 55 kg / 121 lbs.
ASSEMBLED DIMENSIONS 122 x 62.5 x 143 cm / 48” x 24.6” x 56.3”
FLYWHEEL WEIGHT 10.5 kg / 23 lbs.
USER HEIGHT RANGE 150–193 cm / 4'11”–6'4”
Matrix Home Use Matrix Commercial
Frame (not coating) 7 years 7 years
Motor 5 years 3 years
Parts 2 years 2 years
Labour 2 years 1 year

Sprint 8

Build member loyalty with Sprint 8, developed specifically to give your members results that keep them coming back. Sprint 8 is a scientifically validated program that uses high-intensity exercise to stimulate natural human growth hormone, efficiently burning fat and building muscle.

Virtual Active

Virtual Active transforms ordinary exercises into breathtaking journeys through exotic locales. Footage is synced to the intensity and speed of your workout, so you'll really climb hills and race down mountain passes as your incline or resistance changes automatically to match the course on your Matrix touchscreen console. It's interactive, responsive, and seamless, creating one of the most immersive exercise and entertainment experiences available.
